Pull Integration

Pull Integration is used when your ERP should remain the source of truth and Jodo should fetch the latest student, fee, and schedule details only when required.

In this pattern, your ERP exposes a fetch-student API. Jodo calls this API during key moments in the payment or Flex lifecycle and uses the response to update the student context before continuing the flow.

When to Use Pull

• Student and fee data changes frequently in your ERP.
• Jodo should always use the latest fee balance before reminders or debit presentation.
• Your team prefers not to push every data change to Jodo in real time.
• Your ERP can expose a highly available API that responds quickly.

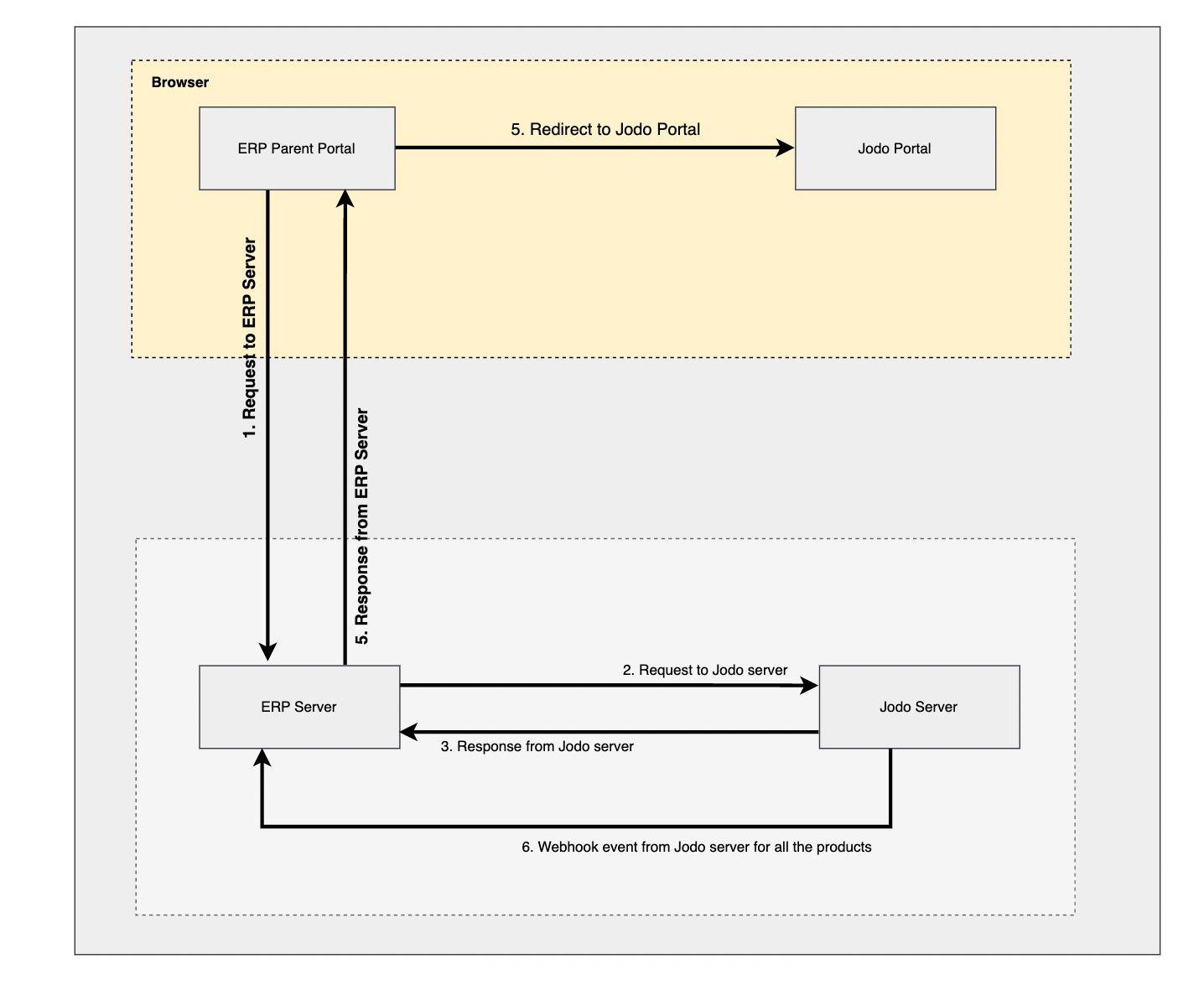

Flow

Jodo calls the configured ERP API in situations such as:

• Before Flex plan setup.
• Around 24 hours before an instalment presentation.
• Before payment reminders are sent.

If Jodo cannot fetch the required data while scheduling a debit, the instalment presentation may be skipped until the data issue is resolved.

API to Fetch Student Details

Requirements

• Protect the endpoint with authentication. Basic authentication is preferred unless another mechanism is agreed.
• Keep the endpoint highly available.
• Return a response within 15 seconds.
• Reflect fee changes, discounts, direct payments, and fee increases immediately in the response.
• Return clear error codes when the student cannot be used for collection.

Request

Jodo makes a HTTP GET request on configured URL. It automatically adds following query parameters depending on the lookup option configured for the institute.

Query Parameter	Description
identifier	Unique identifier for the student.
grade	Grade code.
custom_identifier	Custom identifier for the student (if applicable).
collector_code	Branch code (if applicable).
academic_year_start	Academic year start (if applicable).
academic_year_end	Academic year end (if applicable).

Sample Response (Success)

Response from the ERP system in case the student is found successfully and is active.

Response HTTP code

200

Response Payload (without schedule)

{
  "status": "success",
  "data": {
    "student": {
      "fullname": "Student Name",
      "identifier": "UNIQUE_IDENTIFIER",
      "collector_code": "BRANCH_CODE",
      "grade": "GRADE_CODE",
      "new_admission": true,
      "academic_year_start": "2022",
      "academic_year_end": "2023",
      "date_of_birth": "2006-04-17",
      "primary_contact_name": "Primary contact name",
      "primary_contact_number": "Valid mobile number",
      "primary_contact_email": "Valid email address"
    },
    "fee_components": [
      {
        "component_type": "TUITION_FEE",
        "fee_amount": 10000
      },
      {
        "component_type": "TRANSPORT_FEE",
        "fee_amount": 10500
      }
    ]
  }
}

Response Payload (with schedule, applicable where schedule is maintained in ERP)

{
  "status": "success",
  "data": {
    "student": {
      "fullname": "Student Name",
      "identifier": "UNIQUE_IDENTIFIER",
      "collector_code": "BRANCH_CODE",
      "grade": "GRADE_CODE",
      "new_admission": true,
      "academic_year_start": "2022",
      "academic_year_end": "2023",
      "date_of_birth": "2006-04-17",
      "primary_contact_name": "Primary contact name",
      "primary_contact_number": "Valid mobile number",
      "primary_contact_email": "Valid email address"
    },
    "fee_components": [
      {
        "component_type": "TUITION_FEE",
        "fee_amount": 10000
      }
    ],
    "payment_schedule": [
      {
        "due_date": "2023-07-17",
        "reference_id": "ref_1",
        "details": [
          {
            "component_type": "TUITION_FEE",
            "amount": 5000
          }
        ]
      },
      {
        "due_date": "2023-09-17",
        "reference_id": "ref_2",
        "details": [
          {
            "component_type": "TUITION_FEE",
            "amount": 5000
          }
        ]
      }
    ]
  }
}

data.student (object, required)

Attribute	Type	Required	Description
data.student.fullname	string	Yes	Full name of the student
data.student.collector_code	string	No	In case institute has multiple branch, this will be required
data.student.identifier	string	Yes	Unique identifier, this should be unique for the grade and academic year
data.student.grade	string	Yes	Grade code
data.student.new_admission	boolean	Yes	True if new admission else false
data.student.academic_year_start	string	Yes	Academic year start
data.student.academic_year_end	string	Yes	Academic year end
data.student.date_of_birth	string	No	Date of birth of the student in YYYY-MM-DD format
data.student.primary_contact_name	string	Yes	Primary contact name
data.student.primary_contact_email	string	Yes	Primary contact email
data.student.primary_contact_number	string	Yes	Primary contact phone

data.fee_components (array of objects, required)

Attribute	Type	Required	Description
data.fee_components[].component_type	string	Yes	Component type
data.fee_components[].fee_amount	number	Yes	Total component amount
data.payment_schedule	array	No	Required only if custom schedule configuration is enabled
data.payment_schedule[].due_date	string	Yes	Due date of the instalment
data.payment_schedule[].reference_id	string	No	Optional reference id for the instalment
data.payment_schedule[].identifier	string	No	Optional identifier for the instalment
data.payment_schedule[].is_downpayment	boolean	No	If the instalment is downpayment
data.payment_schedule[].details	array	Yes	Details of the instalment
data.payment_schedule[].details[].component_type	string	Yes	Component type
data.payment_schedule[].details[].amount	number	Yes	Payable amount

data.user (object, optional)

Required only if the student is being pushed using the redirect from the ERP system (using init API).

Attribute	Type	Required	Description
data.user.name	string	Yes	Name of the applicant
data.user.phone	string	Yes	Phone number of the applicant

Sample Response (Error)

Response from the ERP system in case of any validation error.

Response HTTP code

422

Response Payload

{
  "status": "error",
  "message": "<User friendly error message that can be shown to the users>",
  "code": "FETCH_ERROR_CODE"
}

Fetch Error Code

If ERP is unable to return student data for some reason, it can return error code. When the presentation takes place on a given due date, using this Jodo can identify the action to take. For example — if the student is discontinued or is not active.

Error Code	Description
student_not_found	When student not found
student_discontinued	When student is inactive
student_transferred	When student has taken transfer to another branch
data_error	In case of any validation error or data inconsistency
